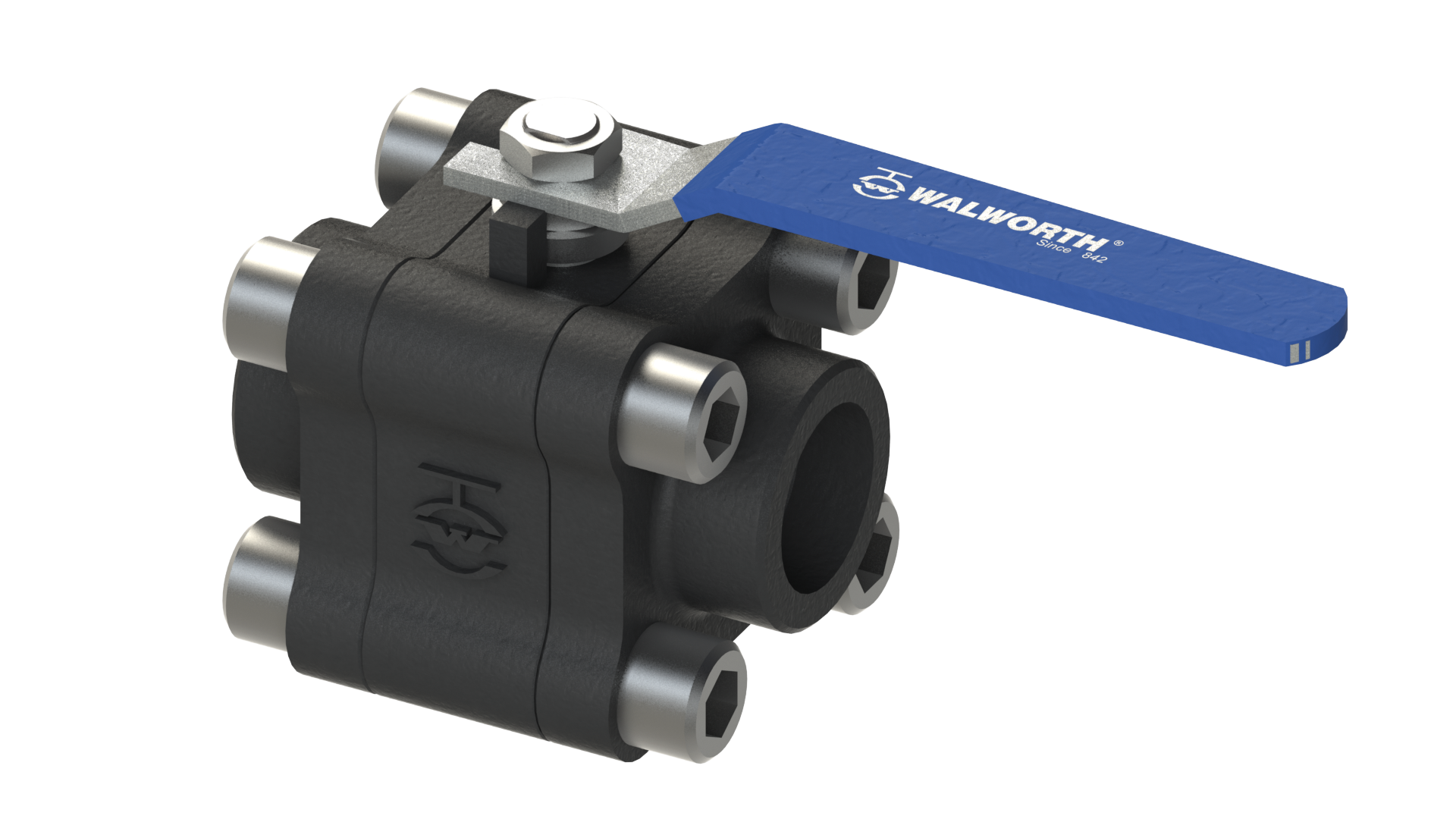

Forged body floating ball

For installation on platforms for crude oil exploitation (offshore), transportation of oil, gas and its derivatives (Onshore) as well as in refineries, chemical plants, petrochemical, oil industry processes or others where there is corrosion, erosion, or flow diversion is required
API-D compliant design for installation on platforms (upstream).
API-608 for ground installations (midstream and downstream). Also meets ISO-14313 and BS-5351 criteria.
Flame-retardant design in accordance with API-6FA, API-607 and ISO-10497.
ASME Classes 800, 1500 and 2500.
Body with weld box ends (SW), threaded ends (S) or mixed ends (SW / S).

Full port with no resistance to flow. Reduced port option upon request
Self-supporting seat rings designed to keep the ball floating at all times.
Valve meets ISO-15848-1 low-emission standards for atmospheric emissions leakage.
Body and forged ends
Anti-ejection stem & anti-static device design to avoid internal sparks that could lead to fire.
