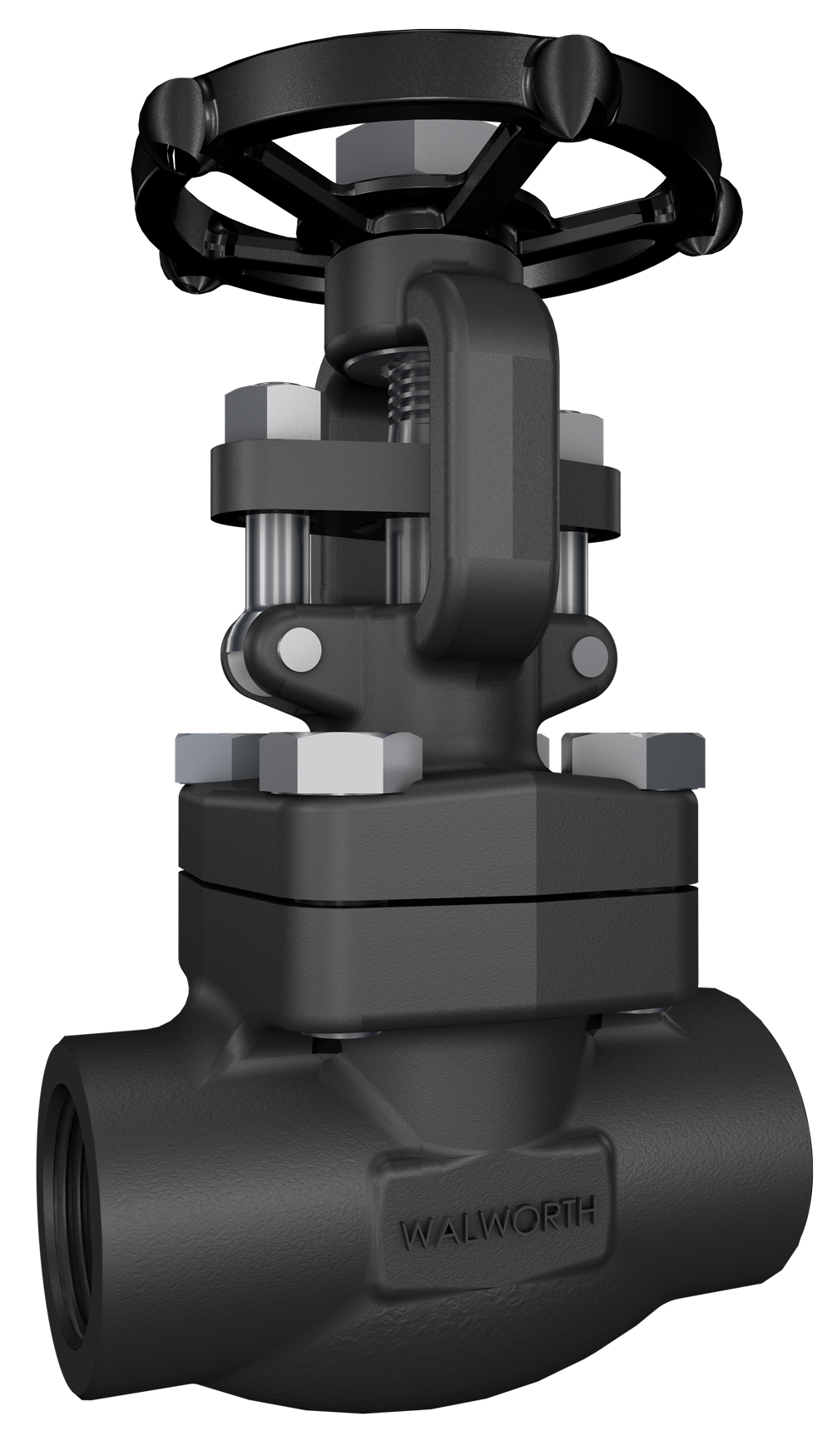

Forged Steel Gate

This is the compact gate valve design in which components bearing pressure are manufactured from forgings (body and hood). Suitable for installation in refineries, chemical plants, petrochemical plants, oil industry processes or others where corrosion or erosion occurs, or flow diversion is required.
Designed in accordance with API-602, ISO-15761 and BS-10434.
-ASME Classes 150, 300, 600, 800, 1500
Class 2500 as per ASME B16.34.
NPS 1/2 to NPS 2 diameters.
End types:
-Welding box end (SW).
Threaded ends (S).
Integral flanged ends (RF, RT). WE ends. Extremos WE.

Standard port with low flow resistance. Full port available upon customer request.
Valve complies with API-624 and ISO-15848-1 standards for low-emission leakage to atmosphere.
Certitied gaskets installed in compliance with API-622.
Flanged or
