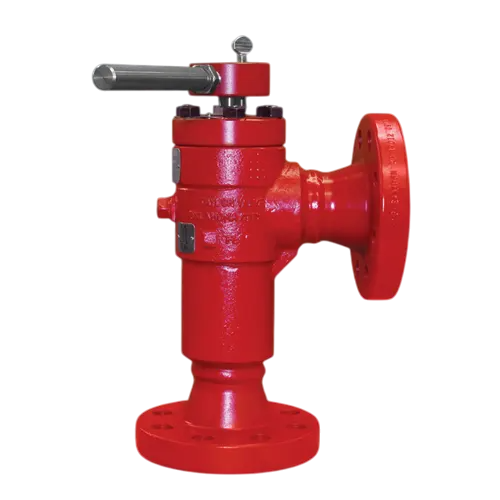

MDA/MDAS Choke Valves
The MDA / MDAS Series Chokes are made with wear-resistant material to extend service life, with redundant O-Rings on the Bonnet Seals and Stem Seals that help prevent leakage. Fully Guided Stems reduce imbalance and vibration. Control Discs provide ANSI Class III/IV Shut off.
Specifications
Connection Size: 1″-2″ Threaded, 3″ Flanged
Connection Type: Threaded, Flanged, Butt Weld, and Victaulic End
Body Style: Angle Body
Body Material: 316 SS
Process Fluid: Gas, Liquid, Vapor, Steam (MDAS)
Max. Working Pressure: 5,000 psi – MAWP 1,333 psi for steam
CV Range: 1″ – 2″: 0.70 – 23.86, 3”: 11.2 -100.74
Applications
High-pressure drop applications in gas, liquid, and vapor. Quick open/close with abrasive fluids at high-pressure drops.
Well Site Automation
Blow Down and Dump Valve
Water Injection Control Valve
Remote Control for directional drilling
CO2 Injection Control Valve
Steam Injection
Pump Bypass
Steam Tracer Control
Pump Startup
Manual and Automated Application
Gas Lift Injection Control
High-Temperature Protection
