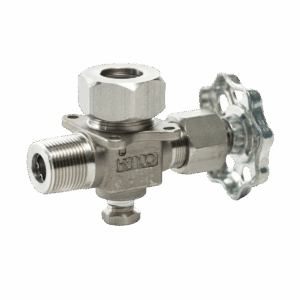

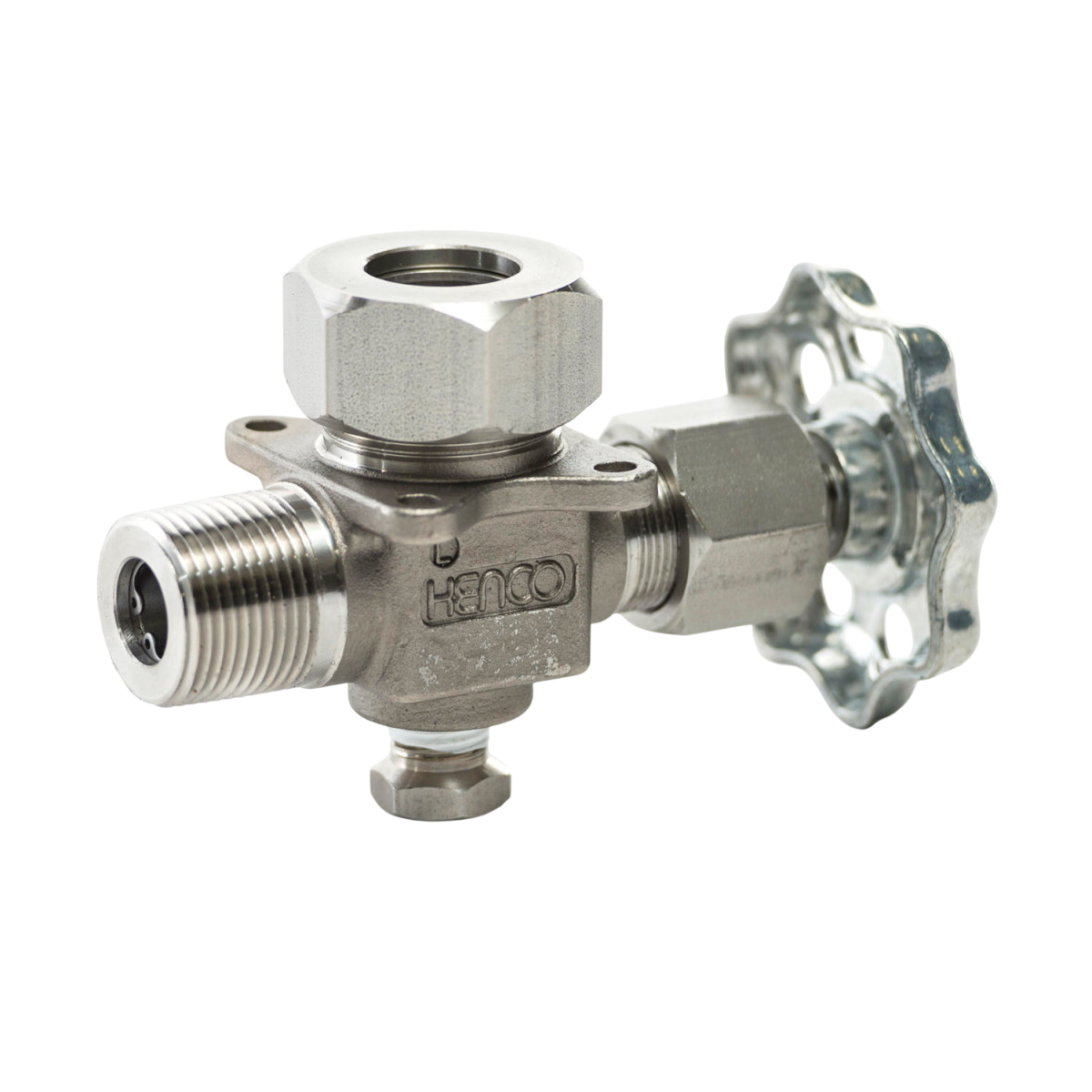

KTV Tubular Valves for Level Gauges
The KENCO Tubular Valve (KTV), when used with a KENCO Safeguard Level Gauge or KENCO EPG Level Gauge, provides maximum operator safety and environmental protection from a potential gauge glass failure. The KTV is designed for service in low to medium pressure applications up to 500 psig (34.47 bar).
Features
- The 1/8″ thick O-ring provides for easy installation of the glass and requires less wrenching of the packing nut to seal
- Positive O-ring seal gauge glass connection
- 1/2″ or 3/4″ MNPT rigid vessel connections
- Flanged vessel connections available
- Ball check shut off
- Inline vent and drain connections
- Straight pattern design
- Braided PTFE stem packing
- All valves are supplied with 316 S.S. valve stems, ball checks and valve stem packing washer
- The valve bodies are precision investment castings with each body pressure tested to assure quality
