Chemical Injectors

KENCO Chemical Injectors are designed to inject and properly atomize corrosive chemicals into the turbulent stream of a process system pipeline. The KENCO Chemical Injector will minimize the possibility of corrosive chemical build-up on the walls of the pipeline. KENCO Chemical Injectors are recommended for use in pipelines with a flow-rate velocity of 40 feet per second (12.192 meters per second), or less.

Patented aspirator tip design on injector disperses chemical evenly into process stream and away from pipe walls

Check valve in injector eliminates backflow

Injector is ideal for high pressure applications up to 6000 psig (413.68 bar)

Injector has been designed so that it can be mounted in any orientation

Standard insertion lengths available from 1-1/2” to 24” long. Custom sizes also available.

Injector available in 316 Stainless Steel, Hastelloy C-276, and CPVC

Ball-check material in 316 Stainless Steel injectors is 316 Stainless Steel and ballcheck material in CPVC and Hastelloy injectors is ceramic.

Ball-check retainer material in 316 Stainless Steel and CPVC injectors is Inconel.

Ball-check retainer material in Hastelloy injectors is Hastelloy.

Standard Injector chemical feed port is 1/2” NPT and process connection is 1/2” or 3/4” NPT. Flanged process connections also available, consult factory for options.

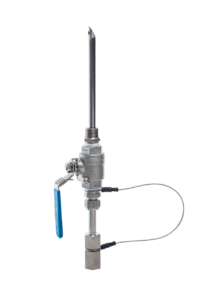

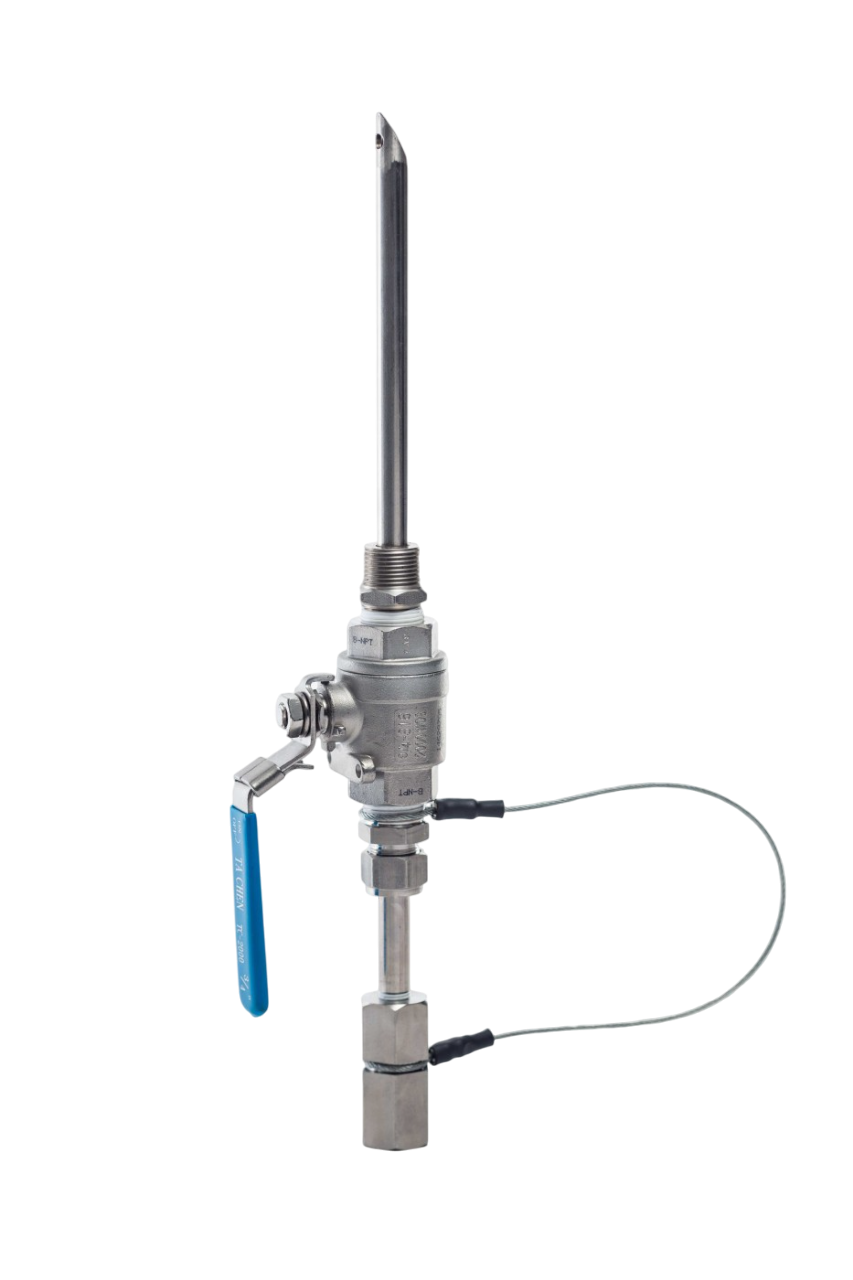

Patented aspirator tip design on injector disperses chemical evenly into process stream and away from pipe walls

Ball valve assembly isolates pipeline from injector assembly when injection is not required

Compression seal holds the assembly from back pressure

Safety line prevents the injector assembly from being completely withdrawn and protects against blowout

Standard ball valve assemblies available in 316 Stainless Steel, Alloy 20, CPVC and Brass. Standard Injector Nozzle assemblies available in 316 Stainless Steel, Hastelloy C-276 and CPVC.

Ball-check material in 316 Stainless Steel injectors is 316 Stainless Steel and ball-check material in CPVC and Hastelloy injectors is ceramic.

Ball-check retainer material in 316 Stainless Steel and CPVC injectors is Inconel.

Ball-check retainer material in Hastelloy injectors is Hastelloy. Optional check valve and/or body bleed valve available.

Standard Retractable Injector chemical feed port is 1/2” NPT. Process connection is 3/4” NPT. Flanged process connections also available, consult factory for options.
